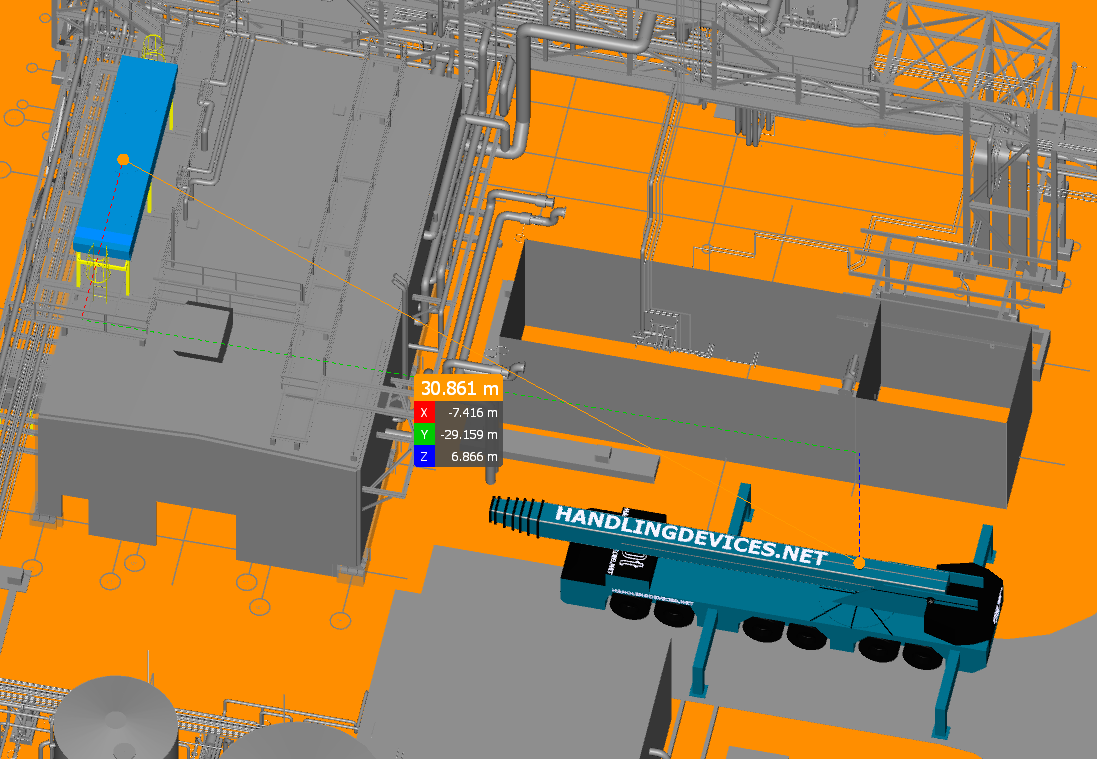

Use this tool to input key dimensions of the current scenario you're studying. As shown in the image below, once you have chosen the crane position, measuring the length of the lifting point to the superstructure center will give you the three vectors of the distance.

Using these three numbers and the crane model plus the distance of the boomtop from the lifting point, will give you the boom length, the boom angle and the superstructure angle.

Select the appropriate crane model from the dropdown, fill in all fields, and press Calculate to get results tailored to your selected crane.
